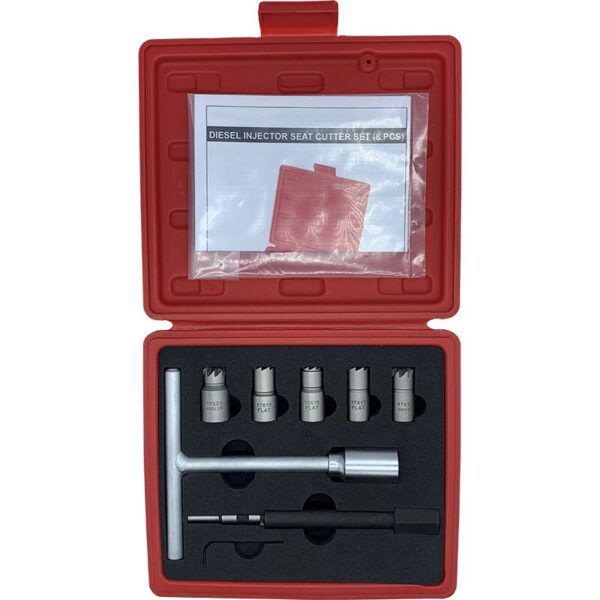

19mm flat reamer for Bosch injectors (Mercedes CDI)
21mm angled reamer for Fiat / Iveco
Magnetic T handle
Allen key for locking grub screw
Once the injector is removed from the head, attempt to clean the injector well with a seat cleaning brush to remove any carbon or rust.
If the injector well cannot be cleaned you will need to use the cutting tool, measure the size cutter required and take note if the bottom of the well should be flat or tapered.
Assemble the tool, apply a small amount of grease to the end of the tool and insert the tool into the required injector well and turn clockwise for a few turns applying light pressure (you don’t want to take off too much material only just enough to clean the area)
Clean the well with a screwdriver and rag / pipe cleaner / vacuum (just make sure not to scratch the bottom or sides) inspect and repeat until desired outcome is achieved
**note** thicker seating washers maybe required after cutting the injector wells to ensure the adequate injector spacing is still achieved (if possible measure the depth of the newly cut seating well and one that has been cleaned only) add the difference of what was removed the new seating washer
A quick how to use video link below
If you are unsure about which Tool you need, contact our friendly sales team on 1300 732 462.
