Direction Plus Fuel Manager Pre-Filter / Water Separator Kit to suit Isuzu D-Max / MU-X 4JJ1TCX 3.0L 2012 – 2020*

Direction Plus Fuel Manager Pre-Filter / Water Separator Kit to suit Isuzu D-Max / MU-X 4JJ1TCX 3.0L 2012 – 2020*

$408.40

  • Subtotal $408.40
  • Total $408.40

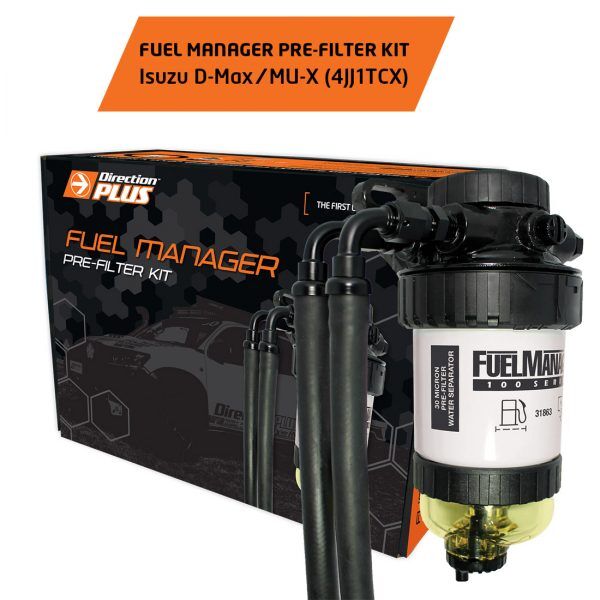

FUEL MANAGER PRE-FILTER KIT D-MAX / MU-X (FM601DPK)

BRAND: Direction Plus™

Fuel Manager Pre-Filter Kit FM601DPK suits Isuzu D-Max and MU-X (4JJ1TCX) models

Download  FM601DPK-Installation-Guide

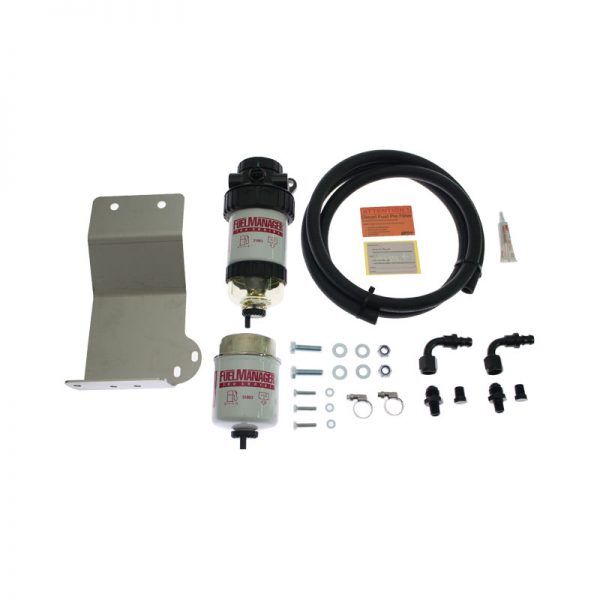

FUEL MANAGER KIT CONTENTS:
  • Filter assembly (including water bowl)
  • Model-specific laser cut stainless bracket
  • Spare filter element
  • All hoses required for the application
  • Nuts, bolts, washers & clamps
  • Installation instructions
HOW IT WORKS

When you install the Direction Plus™ Fuel Manager pre-filter kit between the fuel tank and the O.E.M fuel filter, Fuel Manager will remove most of the contamination by particles and water present in the diesel fuel.

Link to installation guide (may not be the exact same type as advertised)

PROTECT YOUR DIESEL ENGINE AGAINST WATER AND PARTICLE CONTAMINATION

It’s easy to think that fuel contamination is something that happens “in the bush” but this is simply not true! Did you know that 72% of all diesel fuel injection system failures are caused by water and fuel lubricity problems? Direction Plus™ Fuel Manager Pre-Filter Kits protect late model common rail diesel engines against costly injector failure.

Installing a Direction Plus™ Fuel Manager Pre-filter kit between the fuel tank and the O.E.M fuel filter will remove the majority of water and particle contamination. This leaves the O.E.M fuel filter to do the final and finer filtration. This ensures you are maximizing the protection of your diesel fuel system.

For the ultimate front line defense against water and particle contamination,  Fuel Manager Pre-Filter Kit will protect your investment 24 hours a day, 365 days a year.

BENEFITS OF A FUEL MANAGER PRE-FILTER KIT:
  • Reduce wear & tear and avoid repair costs that can exceed $10,000
  • 95% water separation and superior particle removal
  • Ability to separate emulsified water from ULSD
  • Clear water drainage bowl to easily identify removed water
  • Keeps critical engine components clean
  • No filter bypass – contaminated fuel will not be sent to the fuel system even when the filter is blocked
WHY IS A PRE-FILTER KIT SO IMPORTANT?

The Direction Plus Fuel Manager Pre-Filter kit is designed specifically to cope with extreme weather conditions and poor fuel quality removing water and other contaminants from Ultra Low Sulphur Diesel (ULSD).

ULSD is more susceptible to water emulsification, that is water molecules suspended in diesel which is harder to remove than in traditional diesel fuel. This is why old technology like sedimenters work relatively well removing whole water, but struggle with emulsified water, the contaminant you can’t see.

HOW DO YOU KNOW IF YOUR VEHICLE HAS WATER / PARTICLE CONTAMINATION?
  • Loss of RPM / power
  • Blows excessive smoke
  • Has a foul odour
  • Shudders and shakes at all speeds
  • Suddenly stops while driving / hard to start
Why buy from Cheaper Diesel Spares Australia?


At CDSA we supply only genuine manufactured diesel parts from brands such as Bosch, Delphi, Denso and VDO/Siemens to workshops and mechanics. We may be cheaper, but we’re not cheap! We specialise in diesel fuel system parts such as injectors, pumps, suction control valves, pressure limiters and sensors, rails / fuel lines, turbos, intercoolers, fitting kits, electrical connectors, leak off lines, connectors and anything else that might be required.

Cheaper Diesel Spares Australia (CDSA) is an Australian owned and operated company. It was formed in May of 2013 by experienced diesel technicians with over 40 industry years of experience.

Did you know we also offer other services such as Injector testing, pump testing, pre common rail injector and pump rebuilding, ultra sonic cleaning and wet abrasive blasting.



VEHICLE INFORMATION

MANUFACTURER: Isuzu

MODEL: D-MAX, MU-X

DISPLACEMENT: 3.0LTR

ENGINE: 4JJ1TCX

YEAR: D-MAX 2012 – 2019,  MU-X  2017 – 2020

FUEL TYPE: DIESEL

OTHER: Suits single battery only.
