Common Rail Diesel Injector Leak off / Flow Meter Test Adaptor Kit – 24 Piece / 6 Cylinder

Common Rail Diesel Injector Leak off / Flow Meter Test Adaptor Kit – 24 Piece / 6 Cylinder

$109.00

Out of stock

BRAND NEW COMMON RAIL DIESEL INJECTOR LEAK OFF TEST KIT

Use this kit to test the leak off / fuel return values of common rail injectors while still in engine, this kit can be used for 4, 5 and 6 cylinder engines

DESCRIPTION

Flow Meter Set For Common Rail Diesels

A simple way to test the leak off of diesel injectors while still in vehicle, a simple diagnosis tool which can save hours of labour by not removing injectors to test basic functionally of the flow rates and quantities of fuel for the leak off on diesel common rail injectors.

Not this will not check the amount of fuel delivered though the injector, only the leak off amounts which can cause difficult starting of engine.

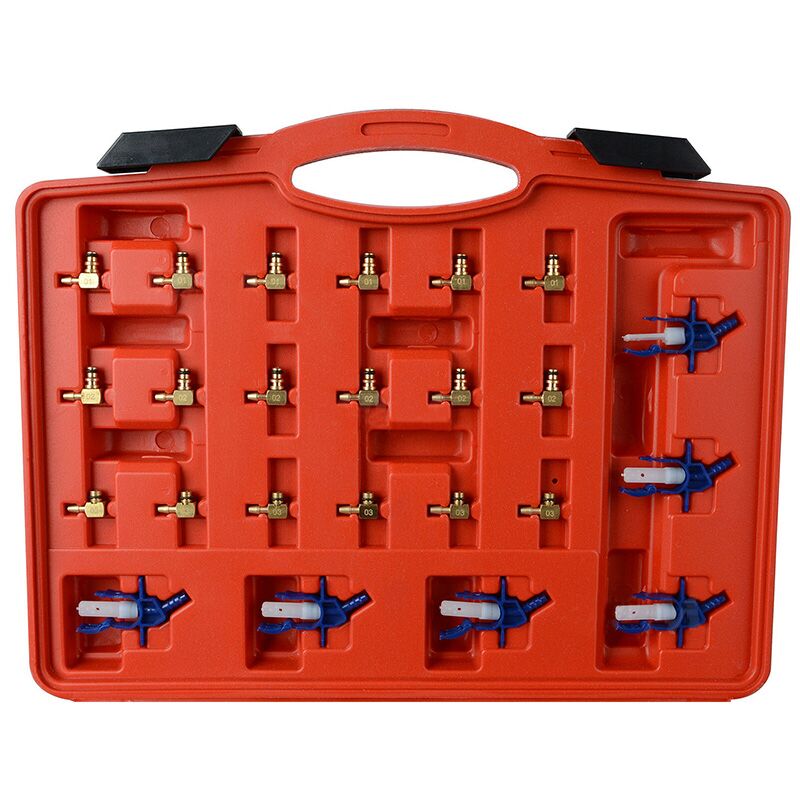

24pcs injector adaptors for BOSCH-01, SIEMENS-02, DENSO-03 and DELPHI injectors

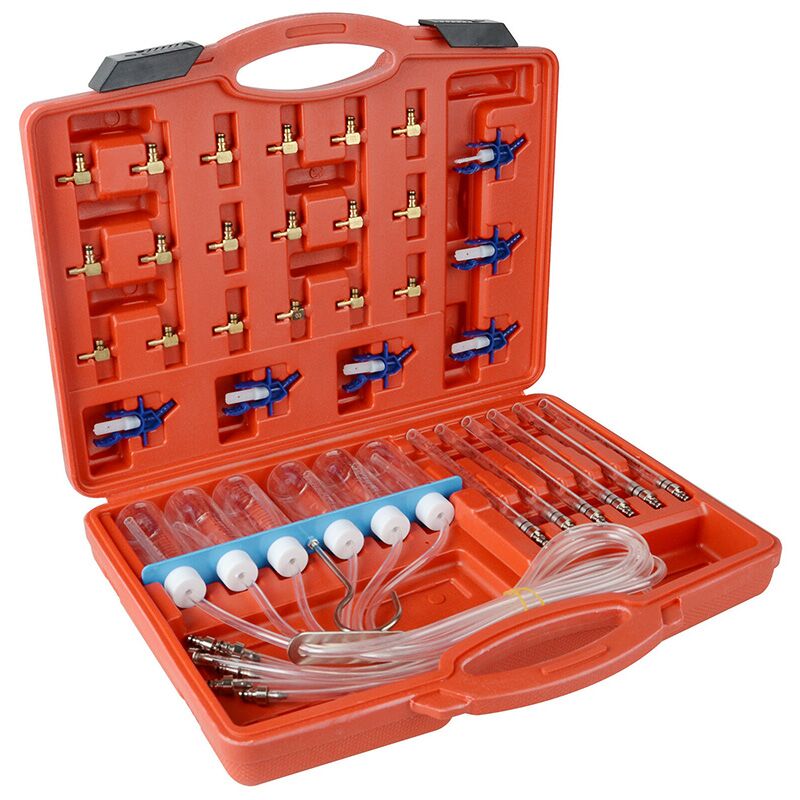

The set includes

  • 6 x Adapter: for Bosch injectors.
  • 6 x Adapter: for Siemens injectors.
  • 6 x Adapter: for Delphi injectors.
  • 6 x Adapter: for Denso injectors.

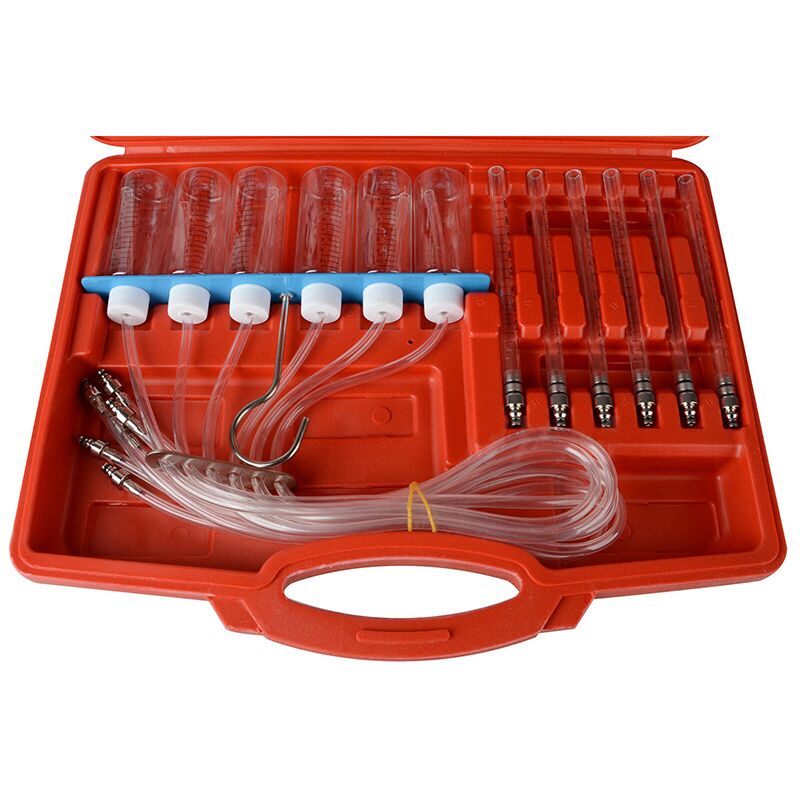

  • 6 graduated reservoir bottles for use when running engine (capacity of 55 ml)
  • 6 fuel-resistant transparent hoses approximately 650mm long
  • 6 graduated manometer tubes for use when cranking engine (capacity of 6 ml)

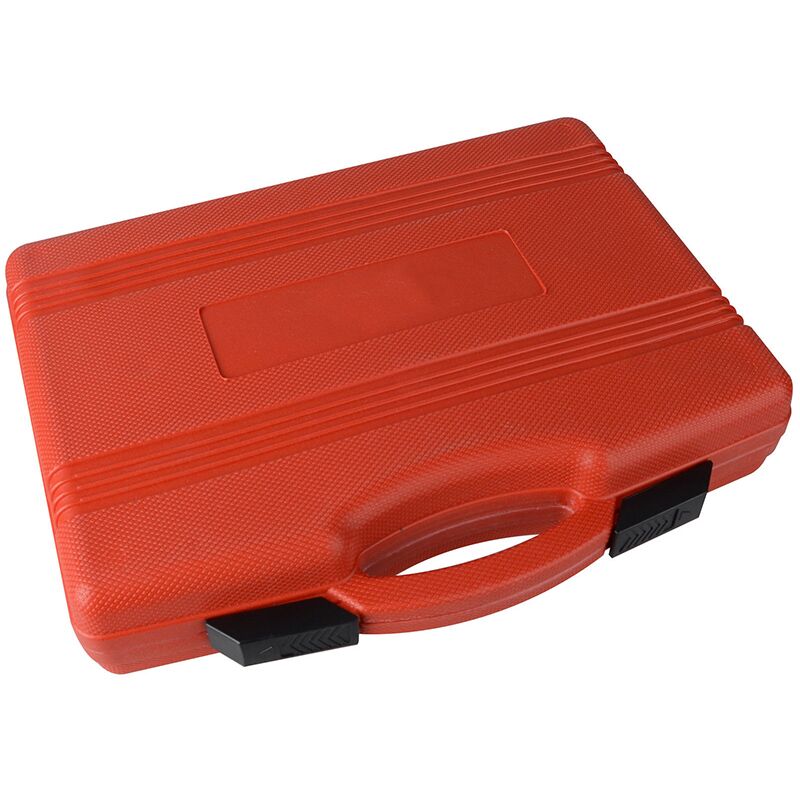

  • Carry Case

Product image may slightly differ from actual product, bottle markings are not in milliliters only an indicator mark



OPERATION

Remove any covers etc to access the diesel injectors, double check the style of injector and leak off connector required to connect to your vehicle.

Connect all injectors to the adapters / hoses, make sure all bottles and hoses are not twisted or folded over and will not get caught in any engine components, Run the engine briefly to check for any leaks and to prime the system, once system has been checked empty the bottles and run again (if a bottle is filling up quite fast, you may need to reduce the running time to prevent an overflow spill)

General test function is to run the vehicle for 60 seconds on idle then turn off the engine, the volume should be less than 20ml per injector (around 10ml for a good injector) Empty the bottles and run the test again 2 more times to confirm the test results, another good practice to confirm any abnormalities is to swap the hoses around incase of any obstructions in the fittings or hose length variations.

If one injector is very high or all are pushing higher volumes this would likely cause starting issues or in some cases other running issues. this would suggest an injector fault and may need replacing / removing for further testing.



Below is a video showing the kit in use





If you are unsure about which Tool  you need, contact our friendly sales team on 1300 732 462.
