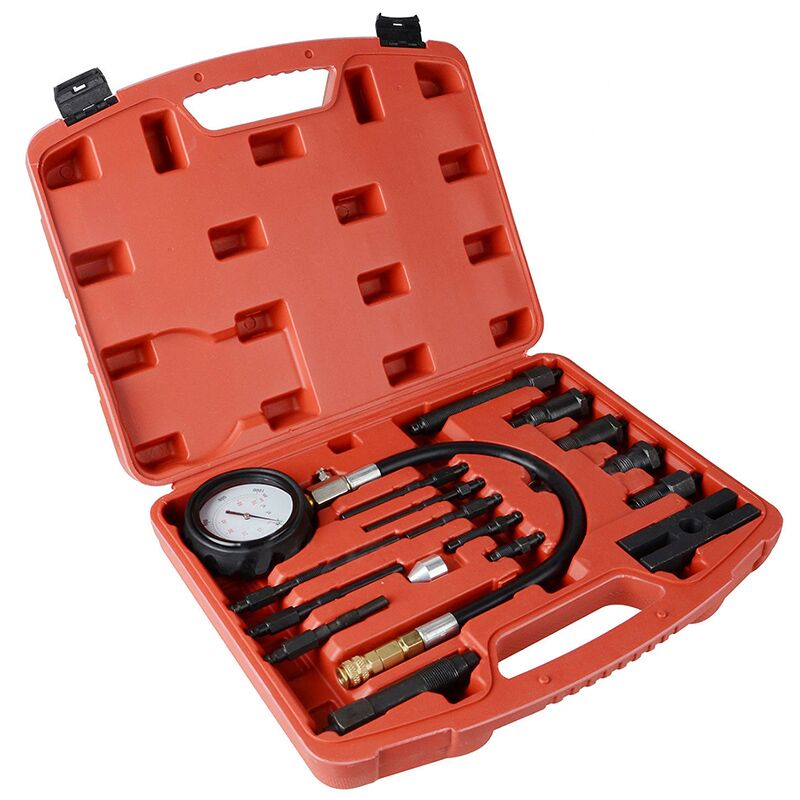

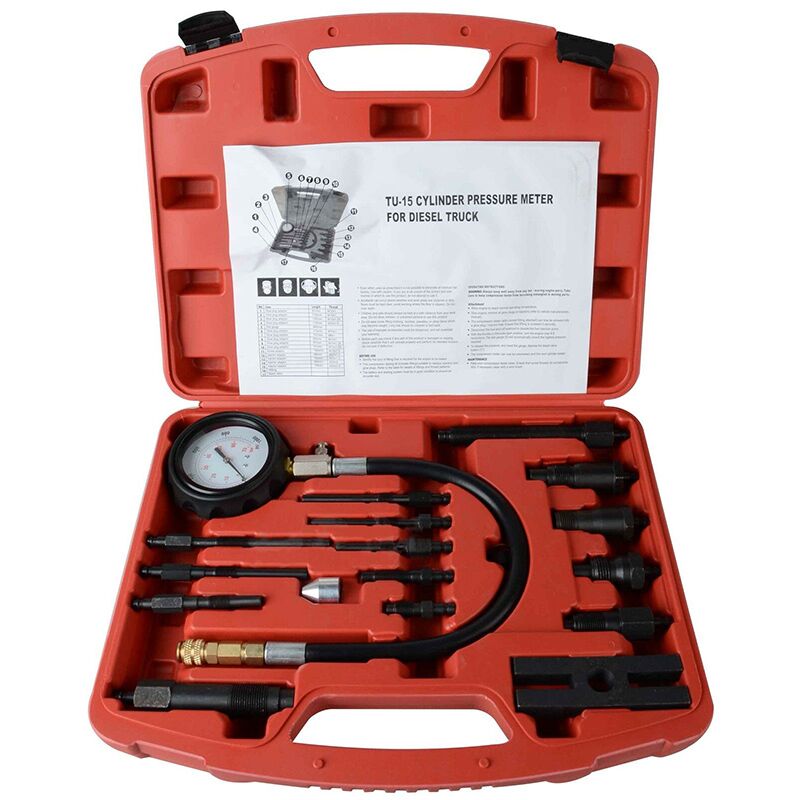

Use this kit to test the compression on most diesel engines, it comes with 12 different adaptors to fit in either the glow plug or injector recces holes
Use this tool kit to identify worn valves and piston rings of most diesel engines through testing the compression of the cylinder

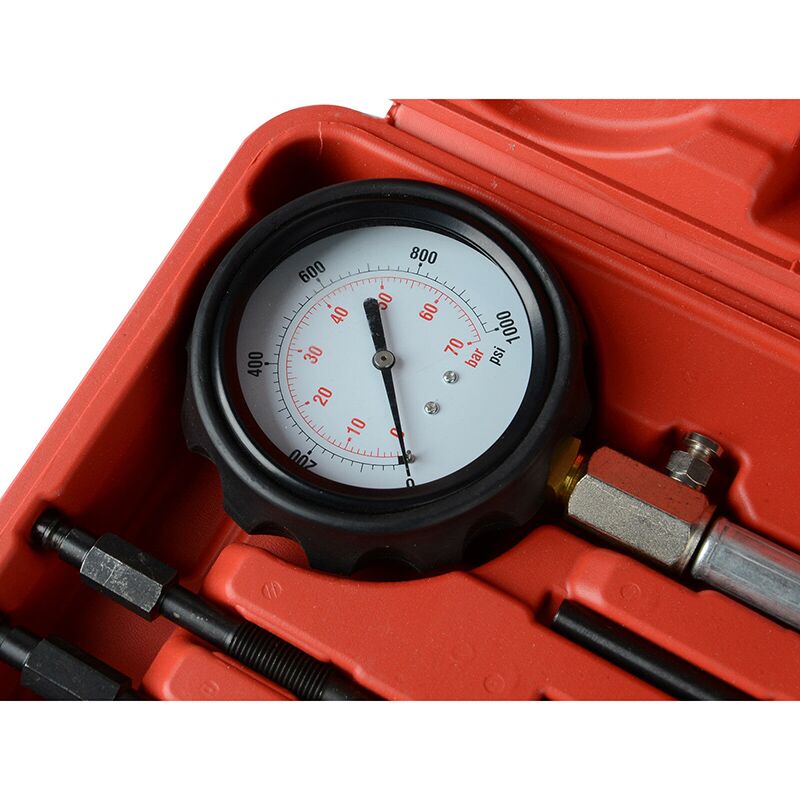

The gauge has a range of 0-70 Bar/0-1000 Psi.

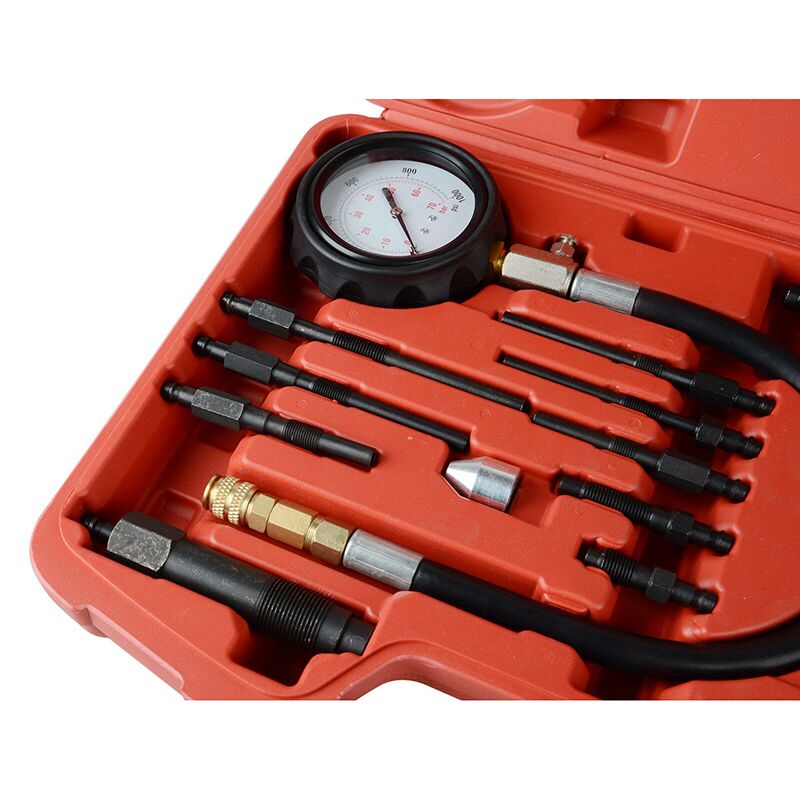

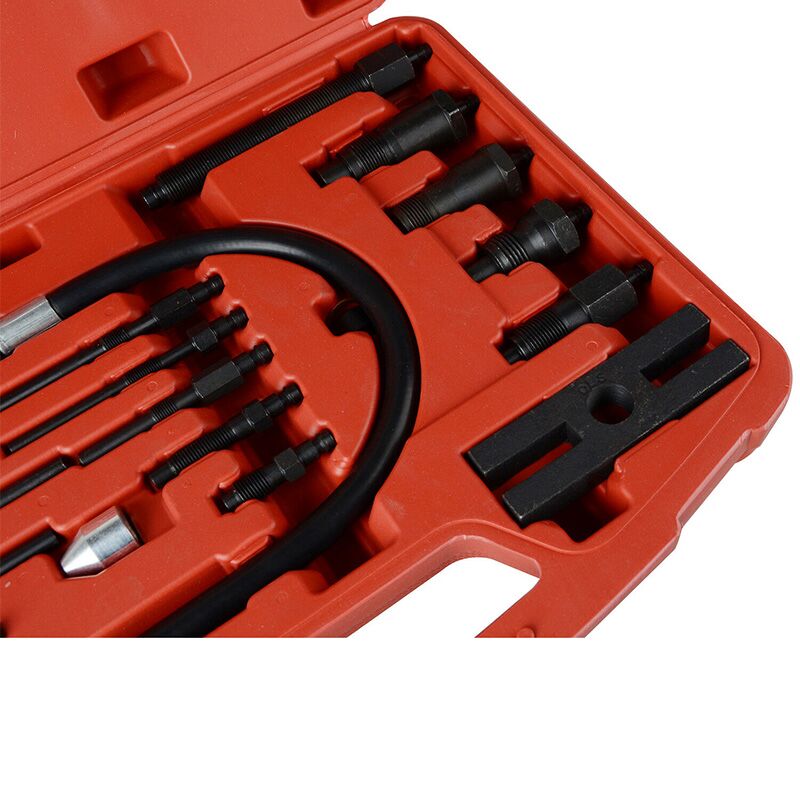

Comes with 9 different glow plugs and 4 injector adaptors.
Adapters for glow plug:
Product image may slightly differ from actual product
To perform a diesel compression test, use the following procedures:
Make sure you have a well charged battery or the battery on charge as this procedure can use a lot of power
STEP 1 Using an air line, blow away all dirt and debris from around the injectors or glow plugs.
STEP 2 Disconnect the fuel pump solenoid or injector electrical plugs (or any other way to stop fuel being injected into the cylinder). Remove either the injectors or glow plugs (normally the glow plugs are the common test area as they are easier to remove.
STEP 3 Start the threaded end of the compression gauge in a glow plug or injector hole by hand and then lightly tighten. make sure all other injectors or glow plugs are removed as it makes it easier to turn the engine over
STEP 4 Turn the ignition on , and crank the engine over for 3-4 revolutions. check the compression reset and try again (do this 2-3 times) if very low double check there is no leaking through the threads on the glow plug or injector
STEP 5 Repeat the test on all cylinder and record the results
On a healthy diesel engine, good compression usually falls between 275 to 400 psi, with a variation of no more than 10 percent between any two cylinders. the compression can vary on a wet and dry test.
Always check against the vehicle specifications on the recommended compression.
Cylinder compression tests are performed to identify any cylinders that have poor compression. If a cylinder has low compression, perform a wet compression test to indicate whether it’s a bad valve, head gasket, or worn piston rings causing the problem.
Below is a video showing the tool in use
